ALLISON ELECTRONICS REMAN

Jultech Inc. Specializes In Allison ECU / TCU & Shift Selector Repairs

See our offerings and part numbers below.

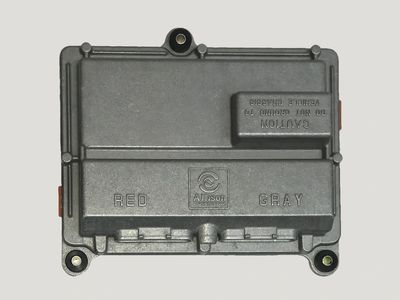

1000/2000 ECU

1000 SERIES, 2000 SERIES TCM

Part Numbers:

193681534, 29537441, 29542725, 29542726, 29545503

Connectors: 2- 32 pin

Services: Test, Repair

Description

1000/2000 series was designed for light duty commercial vehicles.

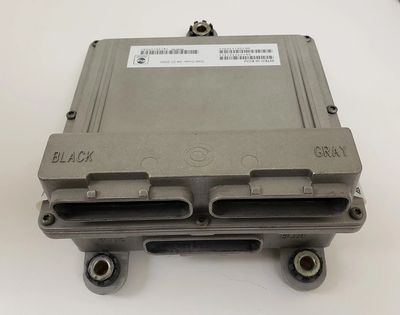

WTEC III ECU

WORLD TRANSMISSION ELECTRONIC CONTROLLER 3 (WTEC 3, CEC 2)

Part Numbers:

29541227, 29528963, 29534937, 29536134, 29537291, 29538352, 29541151, 29543300

Connectors: 3- 32 pin

Services: Test, Repair, Core Exchange, Purchase

Description

WTEC 3 is the successor to the WTEC 2, with some of the units having off highway capabilities.

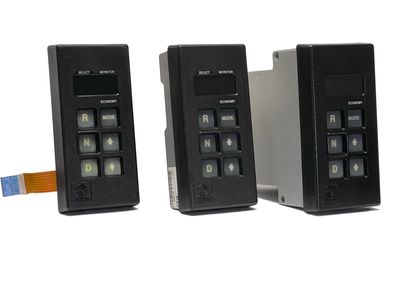

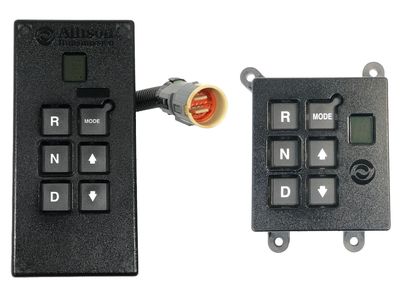

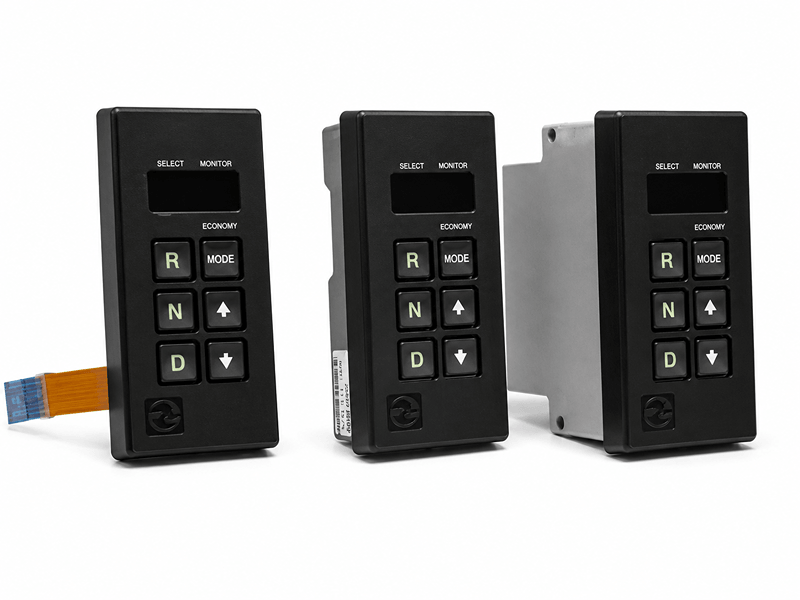

WTEC III PUSH BUTTON SHIFTER

WORLD TRANSMISSION ELECTRONIC SHIFT SELECTOR 3 (WTEC 3, CEC 2)

Part Numbers:

29529429, 29538373, 29529430, 29538022, 29538356, 29538360, 29538371, 29541004, 29541005, 29529613, 29529617, 29529621, 29536927, 29536928, 29536929, 29536930, 29536931, 29537264, 29537265, 15752787

Connectors: 20 pin

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

WTEC 3 Shifters connect to the WTEC 3 ECU.

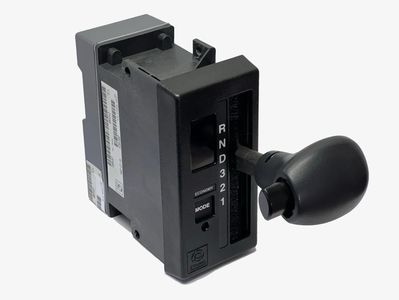

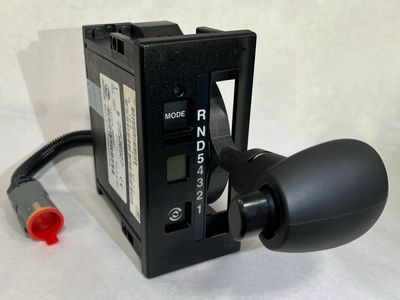

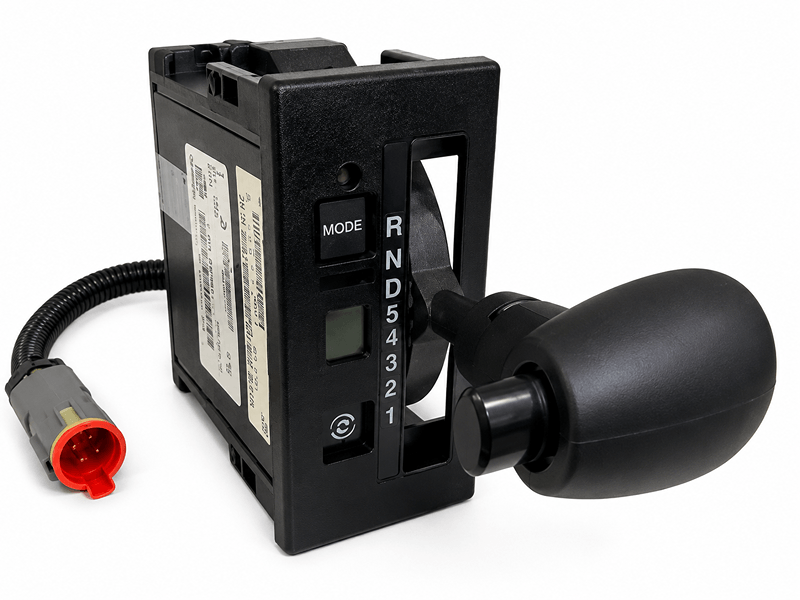

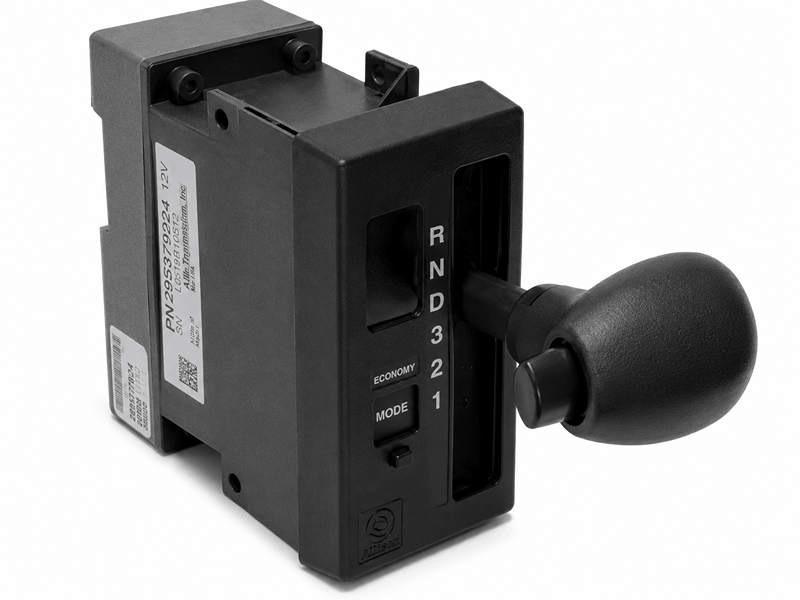

WTEC III LEVER SHIFTER

WORLD TRANSMISSION ELECTRONIC SHIFT SELECTOR 3 (WTEC 3, CEC 2)

Part Numbers:

29529429, 29538373, 29529430, 29538022, 29538356, 29538360, 29538371, 29541004, 29541005, 29529613, 29529617, 29529621, 29536927, 29536928, 29536929, 29536930, 29536931, 29537264, 29537265, 15752787, 29537634, 29547823, 29547824

Connectors: 20 pin

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

WTEC 3 Shifters connect to the WTEC 3 ECU. Jultech can convert between the lever gear ranges to suit your needs.

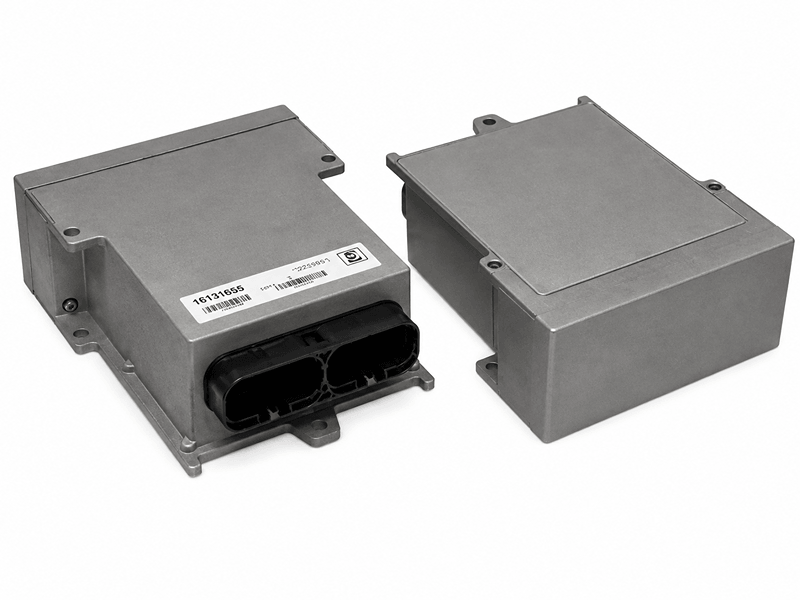

WTEC II ECU

WORLD TRANSMISSION ELECTRONIC CONTROLLER 2 (WTEC 2)

Part Numbers:

29514527, 29507945, 29507947, 29507950, 29511200, 29511201, 29511202, 29511204, 29511215, 29511222, 29511838, 29511839, 29511840, 29511841, 29511842, 29511843, 29512659, 29513411, 29514443, 29514525, 29514526, 29514527, 29516997, 29516998, 29516999, 29517001, 29517002, 29517003, 29517009, 29517116, 29517117, 29524774, 29524774, 29524775, 29524778, 29524779, 29525066, 29530441, 29530443, 29530444, 29541285, 29541595, 29542075, 29587945

Connectors: 2- 34 pin

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

The WTEC 2 can be programmed to several different applications. Jultech is able to convert between most ECU configurations, Basic to Max and 0700 to 0800 CINs.

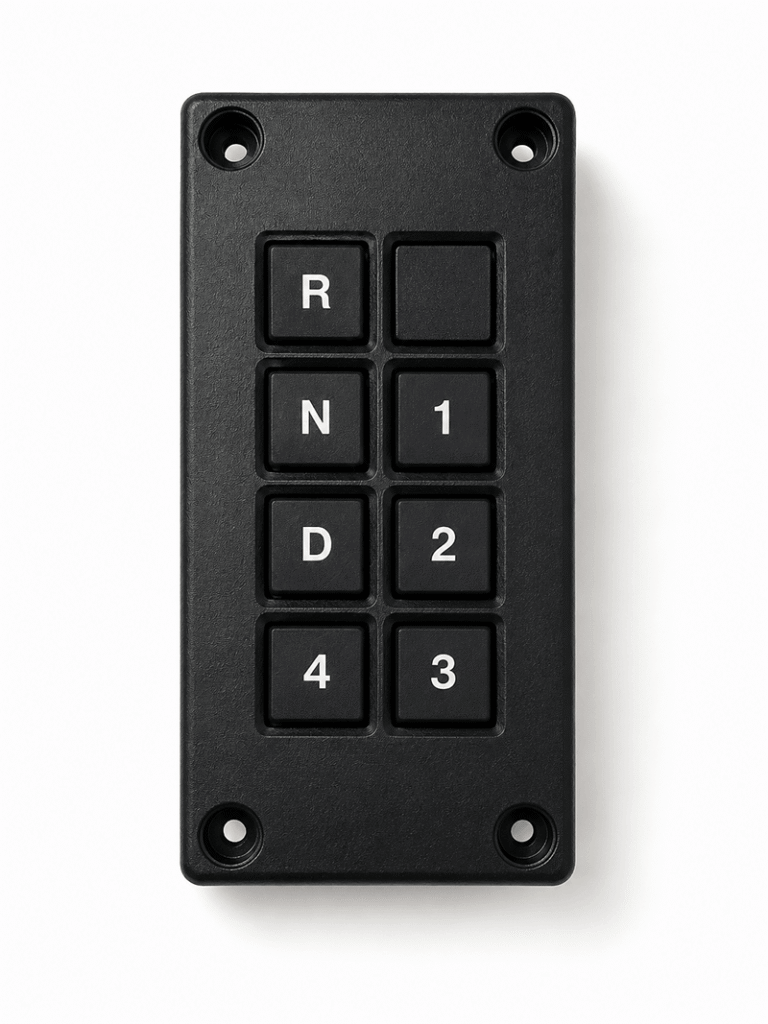

WTEC II PUSH BUTTON SHIFTER

WORLD TRANSMISSION ELECTRONIC SHIFT SELECTOR 2 (WTEC 2)

Part Numbers:

2641398M01, 29501171, 29507938, 29507949, 29512270, 29512273, 29513427, 29514528, 29522940, 29522940, 29541596

Connectors: 16 or 10 pin

Services: Test, Repair, Core Exchange, Purchase

Description

WTEC 2 Shifters control the WTEC 2 ECU and can be integral to the ECU or remote mount.

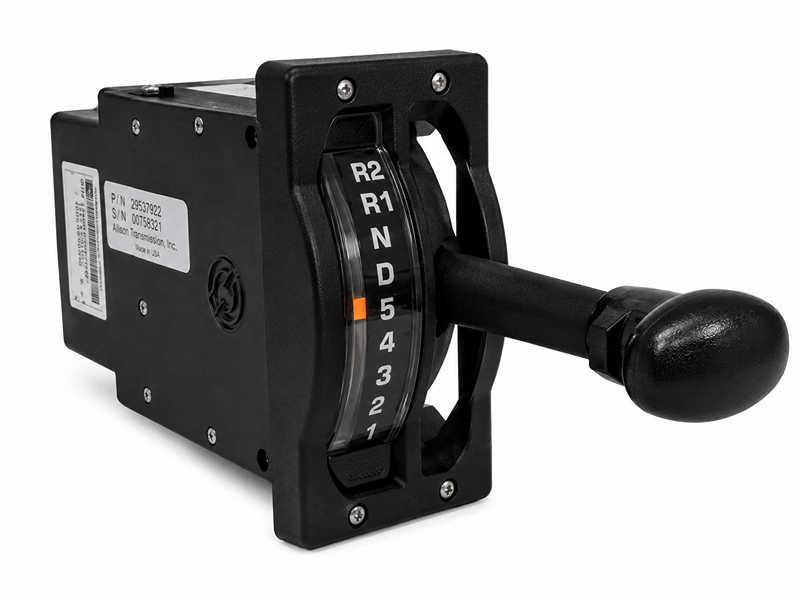

WTEC II LEVER SHIFTER

WORLD TRANSMISSION LEVER SHIFT SELECTOR 2 (WTEC 2)

Part Numbers:

2641398M01, 29501171, 29507938, 29507949, 29512270, 29512273, 29513427, 29514528, 29522940, 29522940, 29541596

Connectors: 16 or 10 pin

Services: Test, Repair, Core Exchange, Purchase

Description

WTEC 2 Shifters control the WTEC 2 ECU and can be integral to the ECU or remote mount.

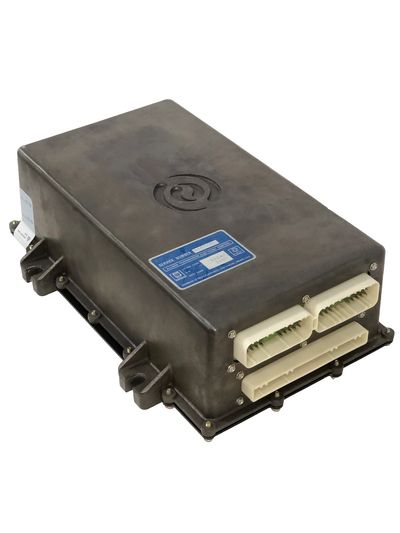

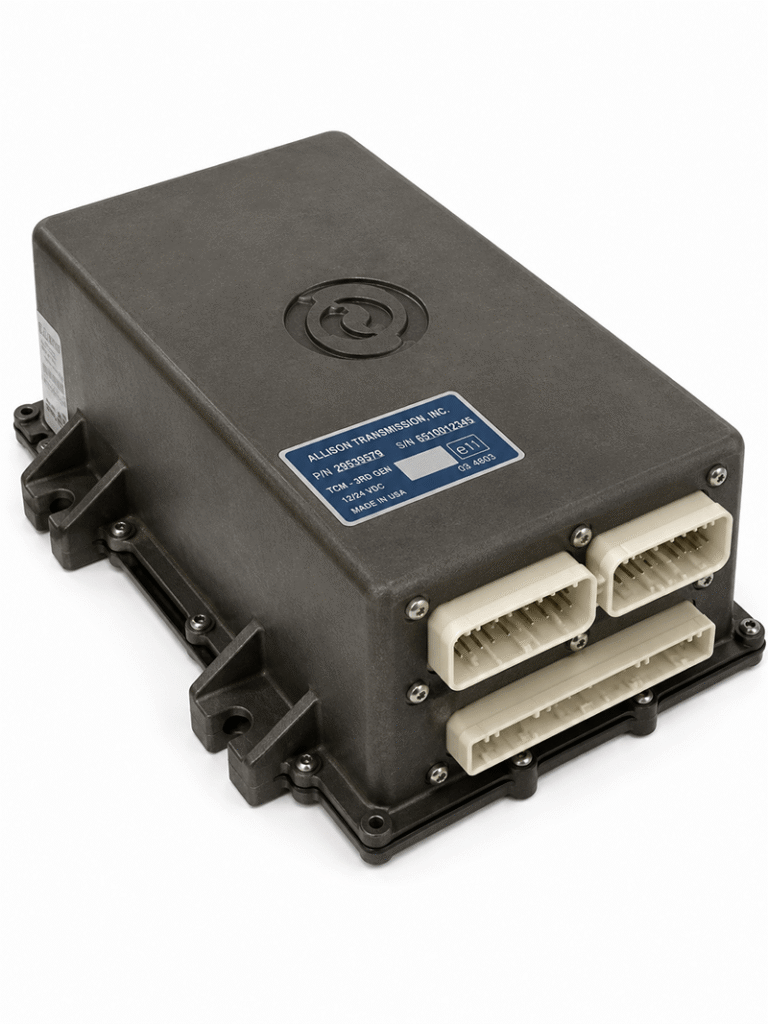

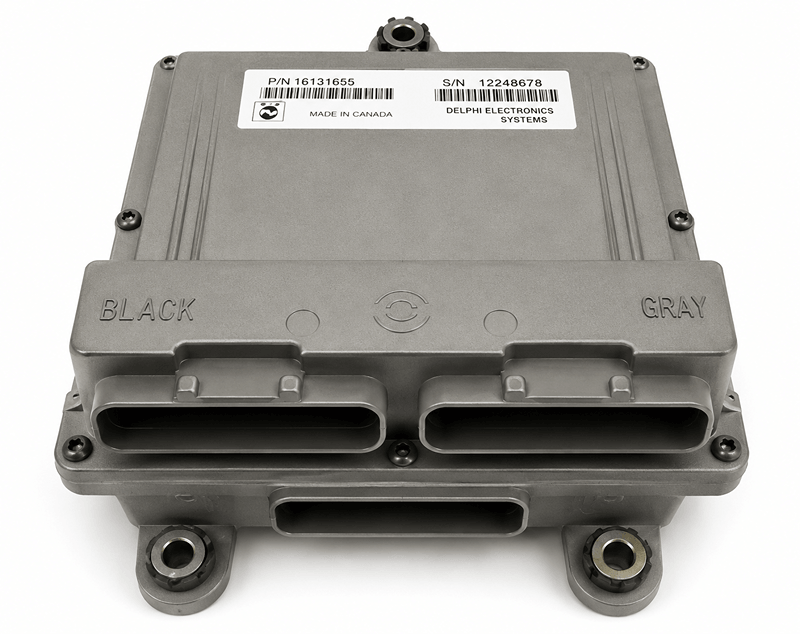

ATEC ECU

ALLISON TRANSMISSION™ ELECTRONIC CONTROLLER (ATEC, CEC1)

Part Numbers (Service Numbers):

1228282, 1228283, 1227938, 16056059, 16056059, 16197599, 16241550, 16172029

Connectors: 2 Joined 30 pin connectors, 1- 16 pin (excluded on 1228283 or 16241550)

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

Allison’s ATEC Electronic Control Unit (ECU) is able to adapt to many different applications by a removable Erasable Programmable Read Only Memory (EPROM) microchip to change the ECU’s behavior. ATEC ECUs are also called CEC1 ECUs. .

ATEC LEVER SHIFTER

ALLISON TRANSMISSION™ LEVER SHIFT SELECTOR (ATEC, CEC1)

Part Numbers:

23016437, 23048153, 23048154, 23048155, 23045063, 23045064, 23045065, 29523113, 23046565, 23046566, 23046569, 23046687, 23046688, 29516450, 29516451, 29520527

Connectors: 16, 18 pin

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

Allison Transmission™ Electronic Shifters control the ATEC or CEC1 transmission through interface with the ECU.

ATEC PUSH BUTTON SHIFTER

ATEC ELECTRONIC SHIFT SELECTOR (ATEC, CEC1)

Part Numbers:

23016437, 23048153, 23048154, 23048155, 23045063, 23045064, 23045065, 29523113, 23046565, 23046566, 23046569, 23046687, 23046688, 29516450, 29516451, 29520527

Connectors: 16, 18 pin

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

Allison Transmission™ Electronic Shifters control the ATEC or CEC1 transmission through interface with the ECU.

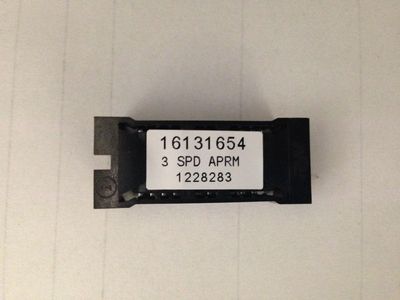

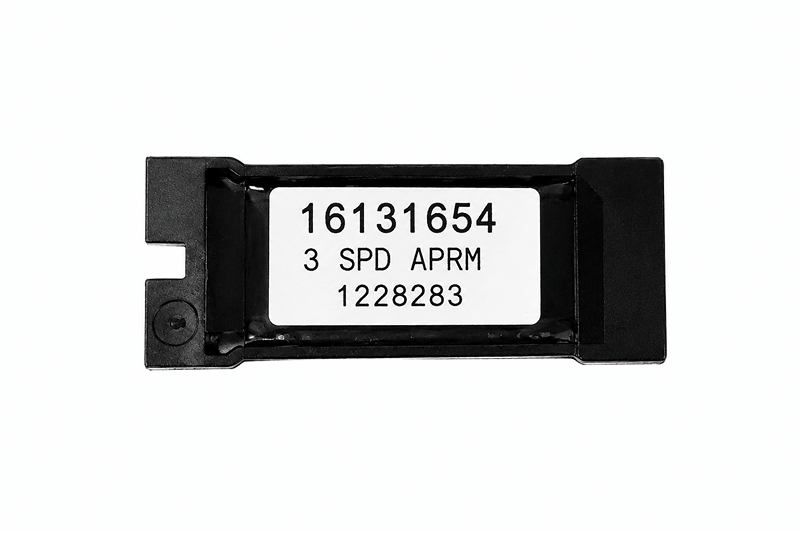

ALLISON TRANSMISSION™ ELECTRONIC EPROM (ATEC, CEC1)

ATEC EEPROM

ATEC Software:

16038904, 16038908, 16048032, 16048079, 16058129, 16070428, 16070807, 16071782, 16071792, 16071827, 16071850, 16071861, 16071917, 16074986, 16075019, 16075095, 16075106, 16075123, 16075145, 16075160, 16075172, 16080785, 16080793, 16080822, 16080847, 16080895, 16080912, 16080945, 16080951, 16084840, 16084858, 16085522, 16085595, 16085771, 16085838, 16088956, 16089050, 16089822, 16131654, 23041342, 23042480, 23042513, 23043006, 29500366, 29500466, 29500517, 29500518, 29500578, 29501896, 29502483, 29502523, 29502527, 29502529, 29502533, 29502541, 29502615, 29502621, 29502649, 29502657, 29502659, 29502761, 29504023, 29504027, 29504035, 29504039, 29504041, 29504043, 29504049, 29504095, 29504117, 29504153, 29504163, 29504171, 29504179, 29504189, 29504259, 29504279, 29504545, 29504547, 29504551, 29504553, 29504579, 29504581, 29504583, 29504584, 29504623, 29504625, 29504629, 29504645, 29504649, 29504671, 29504709, 29504741, 29504757, 29504811, 29504837, 29504853, 29504929, 29504951, 29504953, 29504959, 29504961, 29504963, 29504979, 29504987, 29504991, 29504997, 29514219, 29514223, 29514245, 29521825, 29521829, 29524157, 29524177, 29524189, 29524205, 29529029, 29529055, 29529077, 29532749, 29534597, 29536659, 29538125, 29539709, 29539727, 29539751, 29539753, 29542425, 90000147, 90030001, 89500366

Connectors: 26 DIP

Services: Purchase

Description

ATEC EPROMs allow the functionality of the ECU to change by swapping the chip. However the EPROM must be compatible with the ATEC ECU and application.

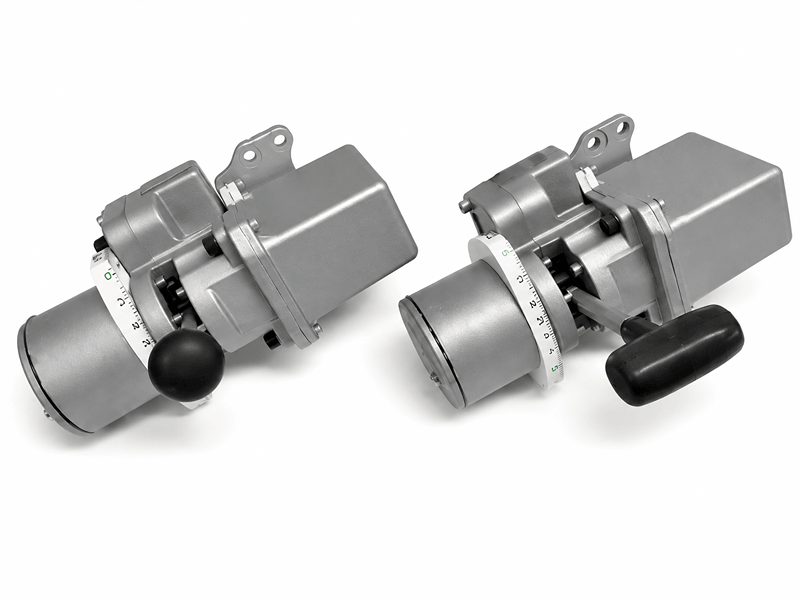

SHIFT TOWER

5000/6000/8000 SERIES MANUAL ELECTRIC CONTROL

ATEC Software:

23017039, 6836513, 23017036, 6836514, 23017037, 6836515, 23017038, 6836516, 23017041, 6836517, 23017040, 6837301, 23017042, 6884100, 23045144, 6839303

Connectors: 16 pin

Services: Test, Repair, Core Exchange, Purchase, Convert

Description

Shift Towers range in configurations such as manual gears, automatic drive, and voltages.

(12V or 24V)

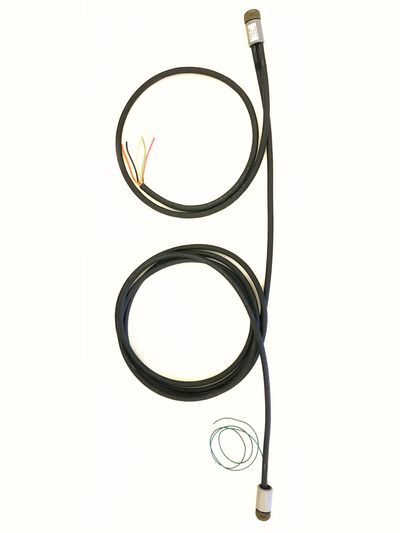

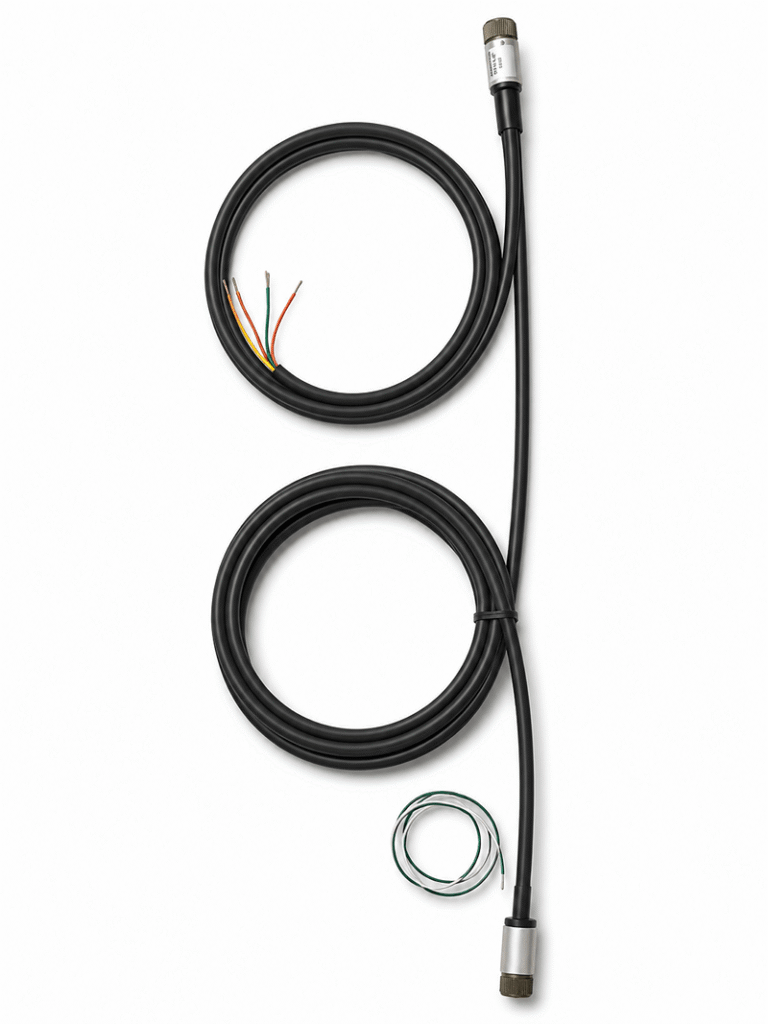

CAB/CHASSIS HARNESS

CAB/CHASSIS 5000/6000/8000 SERIES

CLBT- 5000/6000 MANUAL ELECTRIC

Part Numbers:

6834075, 6834076, 6834077, 6884093, 6834839, 6834840, 6836600, 6836694, 6885045, 6885163

DP- 8000 MANUAL ELECTRIC

Part Numbers:

6834071, 6836695, 6837248, 6837956, 6838548, 6839504, 6839790, 6839791

CLBT- 5000/6000 / DP-8000 AUTO ELECTRIC

Part Numbers:

6834896, 6834897, 6835134, 6835164, 6837318, 6837319, 6839571, 6839572

Connectors: 16 pin

Services: Purchase

Description

Harness for Allison Transmission 5000 Series, 6000 Series, 8000 Series. Automatic electric & manual electric.

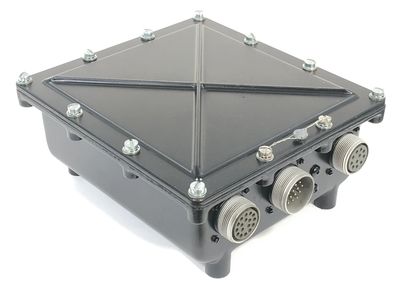

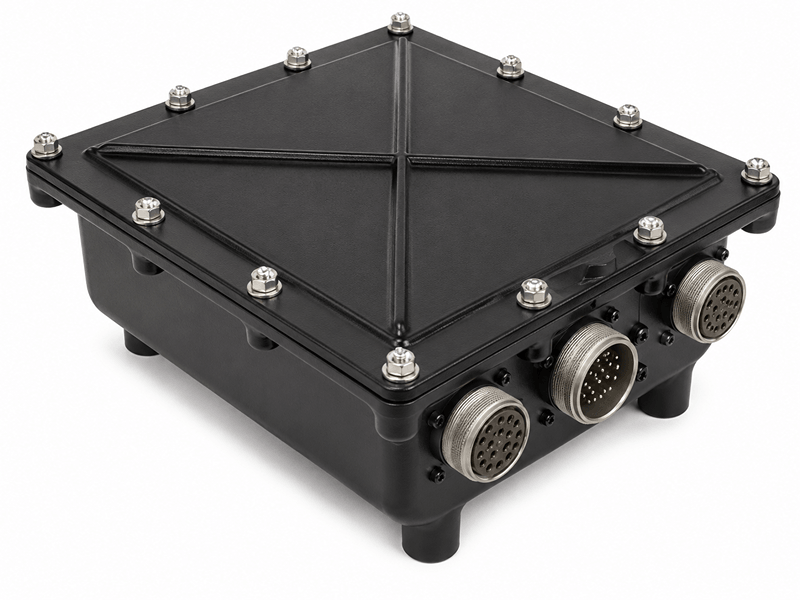

SPG

SHIFT PATTERN GENERATOR 5000/6000/DP8000 SERIES

ATEC Software:

23012090, 23012090S, 23012331, 23040365, 23040369, 6833851, 6833862, 6838586, 6839678, 6880584, 6880585, 6881050, 6882670, 6882671, 6882672, 6882673, 6882674, 6882675, 6883830

Connectors: 17 pin, 19 pin, 11 pin

Services: Test, Repair, Convert

Description

Configured for automatic gear selection, dual or twin.

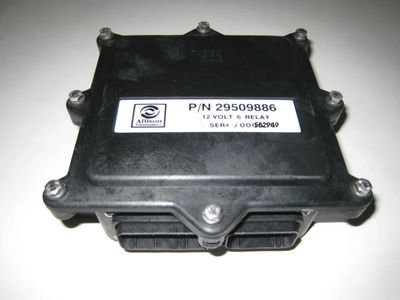

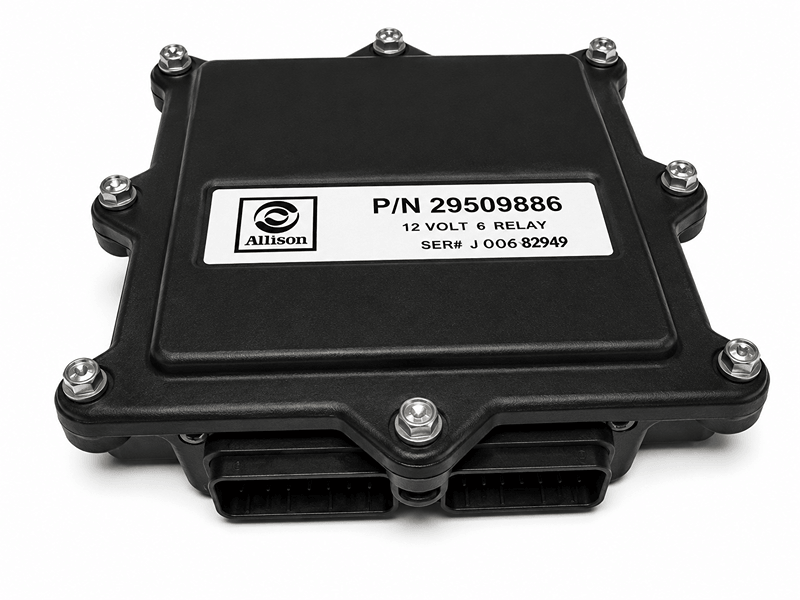

VIM

VIM (VEHICLE INTERFACE MODULE)

Part Numbers:

272968, 29509886, 29509889, 29516036, 29556644, 29556646, 29556648, ATC-2400, ATII-1200

Connectors: 2 joined 30 pin & 18 pin connectors

Services: Test, Repair

Description

Relay box assembly (12V or 24V)
